Product introduction:

We encapsulate the vacuum interrupter, main circuit live parts, high-accuracy voltage and current sensors, and high voltage pickup capacitors inside the cycloaliphatic-epoxy poles, based on decades of experience in solid insulation technology, eliminating all the partial discharge problems. The poles can pick up the voltage or current signals from power source side and secondary side at the same time, also the capacitor can power supply the intelligent electronic device (IED).

The actuator is small and spring actuated, located in the sealed tank. The circuit breaker can be operated open and close manually, automatically and remotely.

Three-phase linkage disconnecting switch, with a mis-operation locking, can also be connected to the circuit breaker.

Note: Technical datas and sketches are only for your reference. Such details in our contact prevail.

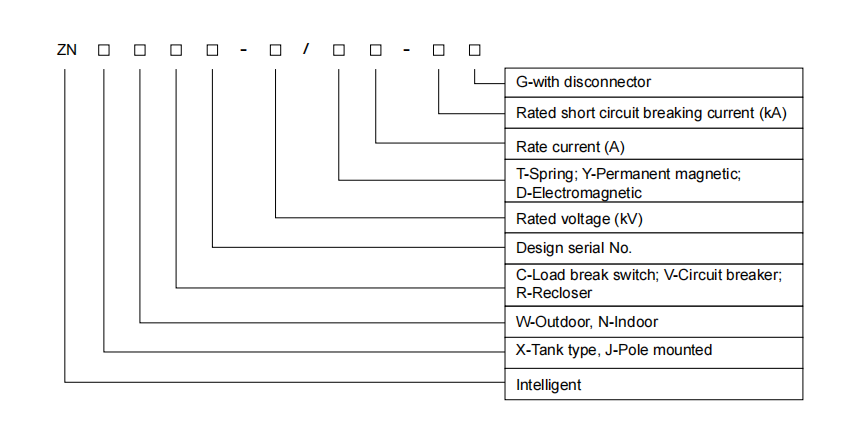

Model annotation:

Technical parameter:

NO	Item		Unit	ZNJWV1-12/T630-20	ZNJWV1-12/T630-20G
1	Interrupting medium		-	Vacuum	Vacuum
2	Insulation medium		-	Solid insulation	Solid insulation
3	Rated voltage		kV	12	12
4	Rated frequency		Hz	50	50
5	Rated current		A	630	630
6	Rated short-time withstand current		kA	20	20
7	Rated short circuit breaking current		kA	20	20
8	Rated peak withstand current		kA	50	50
9	Duration of rated short circuit		s	4	4
10	Interrupting times of short circuit current		times	≥30	≥30
11	Rated operation sequence		-	O-0.3s-CO-180s-CO	O-0.3s-CO-180s-CO
12	Rated lightning impulse withstand voltage(1.2/50μs，peak)	between phases, phase to earth	kV	75	75
12	Rated lightning impulse withstand voltage(1.2/50μs，peak)	between interrupters	kV	85	85
13	Rated power frequency short-time withstand voltage (1min）	between phases, phase to earth	kV	42	42
13	Rated power frequency short-time withstand voltage (1min）	between interrupters	kV	48	48
14	Partial discharge of the whole breaker(CS, VS and pickup capacitor are included)	Testing voltage	kV	14.4	14.4
14		Partial discharge	pC	≤20	≤20
15	Main resistance		μΩ	≤80	≤130
16	Mechanical operation lifetime		operation	≥10000	≥10000
17	Actuator type		-	Spring actuator	Spring actuator
18	Operation type		-	Motor,with manually opening and closing	Motor,with manually opening and closing
19	Operation voltage		V	DC24	DC24
20	Closing time		ms	≤60	≤60
21	Opening time		ms	≤40	≤40
22	Synchronism in closing and opening		ms	≤2	≤2
23	Current sensors inside the pole	Rated current ratio	phase sequence	600A/1V	600A/1V
		Rated current ratio	Zero sequence	20A/0.2V	20A/0.2V
		Accurancy	phase sequence	metering 0.5s，Protection 5P10	metering 0.5s，Protection 5P10
		Accurancy	Zero sequence	class 1，Protection 10P10	class 1，Protection 10P10
		Temperature range	℃	-40℃～70℃	-40℃～70℃
		Implementation	-	low power electro-magnetic	low power electro-magnetic
24	Voltage sensors inside the pole	Rated voltage ratio	phase sequence	（10kV/√3）/（3.25V/√3）	（10kV/√3）/（3.25V/√3）
		Rated voltage ratio	Zero sequence	（10kV/√3）/（6.5V/3）	（10kV/√3）/（6.5V/3）
		Accurancy	phase sequence	class 0.5	class 0.5
		Accurancy	Zero sequence	class 1	class 1
		Temperature range	℃	-40℃～70℃	-40℃～70℃
		Implementation	-	capacitor divider	capacitor divider
		Sampling type	-	power side and load side voltage pickcup	power side and load side voltage pickcup
25	Capacitors inside the pole	power supply	-	built-in capacitor power supply	built-in capacitor power supply
		Installation	-	capacitor power supply integrated in the pole	capacitor power supply integrated in the pole
		Single-phase rated output power	W	≥10±10%	≥10±10%
26	Remote/Local lockout		-	optional	optional
27	Re-close enable / disable function		-	optional	optional
28	Manually close lockout		-	N/M	N/M
29	Closure protection level		-	not lower than IP67	not lower than IP67
30	Circuit breaker liftime		Year	20	20

Appearance size:

Installation indication:
